pacman::p_load(igraph, tidygraph, ggraph,
visNetwork, lubridate, clock,
tidyverse, graphlayouts)Hands_On_Ex05
Installing Packages
Importing data from Files
GAStech_nodes <- read_csv('data/GAStech_email_node.csv')
GAStech_edges <- read_csv("data/GAStech_email_edge-v2.csv")Reviewing the imported Data
glimpse(GAStech_edges)Rows: 9,063
Columns: 8
$ source <dbl> 43, 43, 44, 44, 44, 44, 44, 44, 44, 44, 44, 44, 26, 26, 26…
$ target <dbl> 41, 40, 51, 52, 53, 45, 44, 46, 48, 49, 47, 54, 27, 28, 29…
$ SentDate <chr> "6/1/2014", "6/1/2014", "6/1/2014", "6/1/2014", "6/1/2014"…
$ SentTime <time> 08:39:00, 08:39:00, 08:58:00, 08:58:00, 08:58:00, 08:58:0…
$ Subject <chr> "GT-SeismicProcessorPro Bug Report", "GT-SeismicProcessorP…
$ MainSubject <chr> "Work related", "Work related", "Work related", "Work rela…
$ sourceLabel <chr> "Sven.Flecha", "Sven.Flecha", "Kanon.Herrero", "Kanon.Herr…
$ targetLabel <chr> "Isak.Baza", "Lucas.Alcazar", "Felix.Resumir", "Hideki.Coc…Wrangling Time
GAStech_edges <- GAStech_edges %>%
mutate(SendDate = dmy(SentDate)) %>%
mutate(Weekday = wday(SentDate, label=TRUE, abbr=FALSE))GAStech_edges_aggregated <- GAStech_edges %>%
filter(MainSubject == "Work related") %>%
group_by(source,target,Weekday) %>%
summarise(Weight = n()) %>%
filter(source!=target) %>%
filter(Weight>1) %>%
ungroup() Creating network objects using tidygarph
GAStech_graph <- tbl_graph(nodes = GAStech_nodes,
edges = GAStech_edges_aggregated, directed = TRUE)GAStech_graph# A tbl_graph: 54 nodes and 1372 edges
#
# A directed multigraph with 1 component
#
# A tibble: 54 × 4
id label Department Title
<dbl> <chr> <chr> <chr>
1 1 Mat.Bramar Administration Assistant to CEO
2 2 Anda.Ribera Administration Assistant to CFO
3 3 Rachel.Pantanal Administration Assistant to CIO
4 4 Linda.Lagos Administration Assistant to COO
5 5 Ruscella.Mies.Haber Administration Assistant to Engineering Group Manag…
6 6 Carla.Forluniau Administration Assistant to IT Group Manager
# ℹ 48 more rows
#
# A tibble: 1,372 × 4
from to Weekday Weight
<int> <int> <ord> <int>
1 1 2 Sunday 5
2 1 2 Monday 2
3 1 2 Tuesday 3
# ℹ 1,369 more rowsGAStech_graph %>% activate(edges) %>% arrange(desc(Weight))# A tbl_graph: 54 nodes and 1372 edges
#
# A directed multigraph with 1 component
#
# A tibble: 1,372 × 4
from to Weekday Weight
<int> <int> <ord> <int>
1 40 41 Saturday 13
2 41 43 Monday 11
3 35 31 Tuesday 10
4 40 41 Monday 10
5 40 43 Monday 10
6 36 32 Sunday 9
# ℹ 1,366 more rows
#
# A tibble: 54 × 4
id label Department Title
<dbl> <chr> <chr> <chr>
1 1 Mat.Bramar Administration Assistant to CEO
2 2 Anda.Ribera Administration Assistant to CFO
3 3 Rachel.Pantanal Administration Assistant to CIO

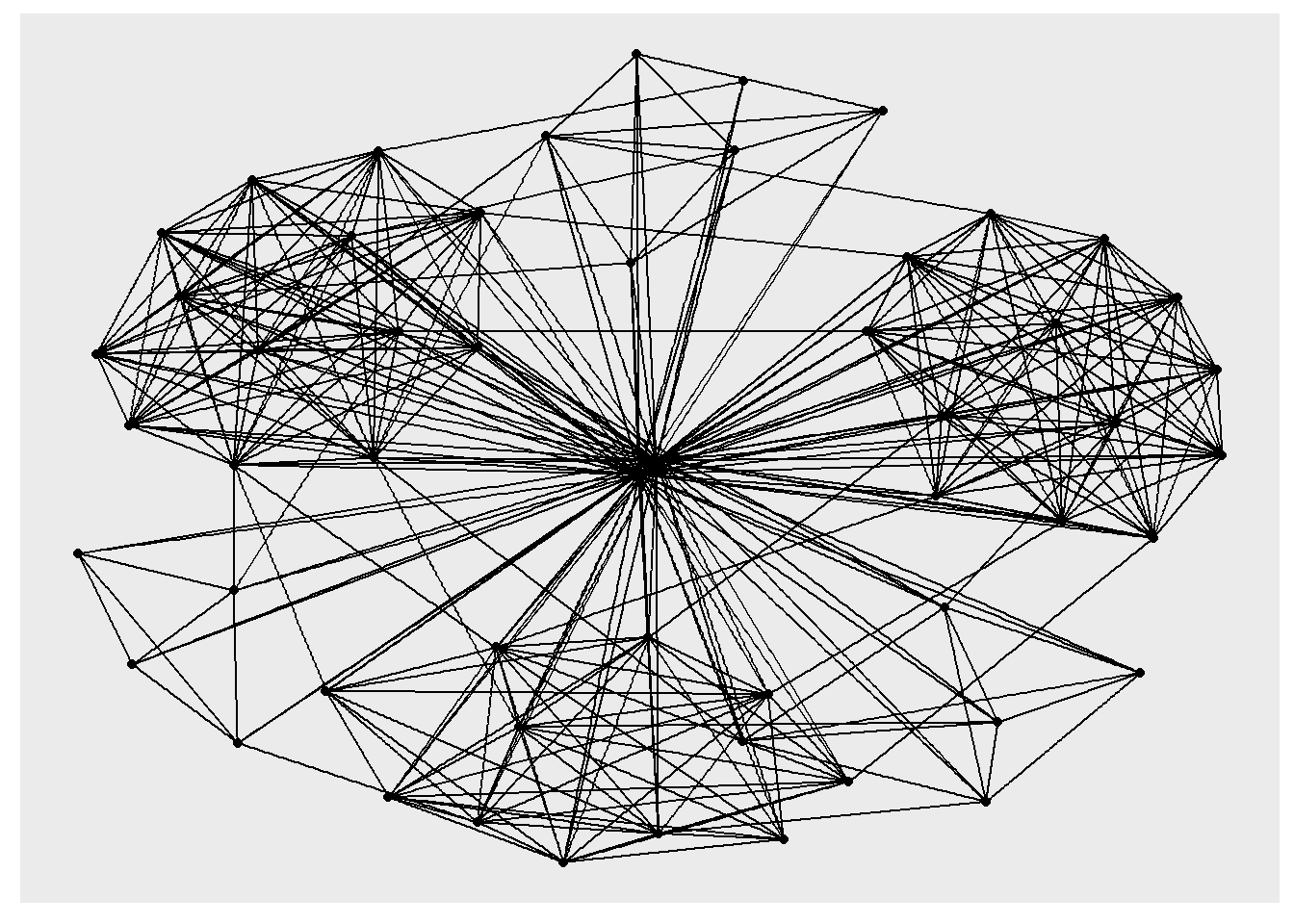

# ℹ 51 more rowsggraph(GAStech_graph) + geom_edge_link() + geom_node_point()

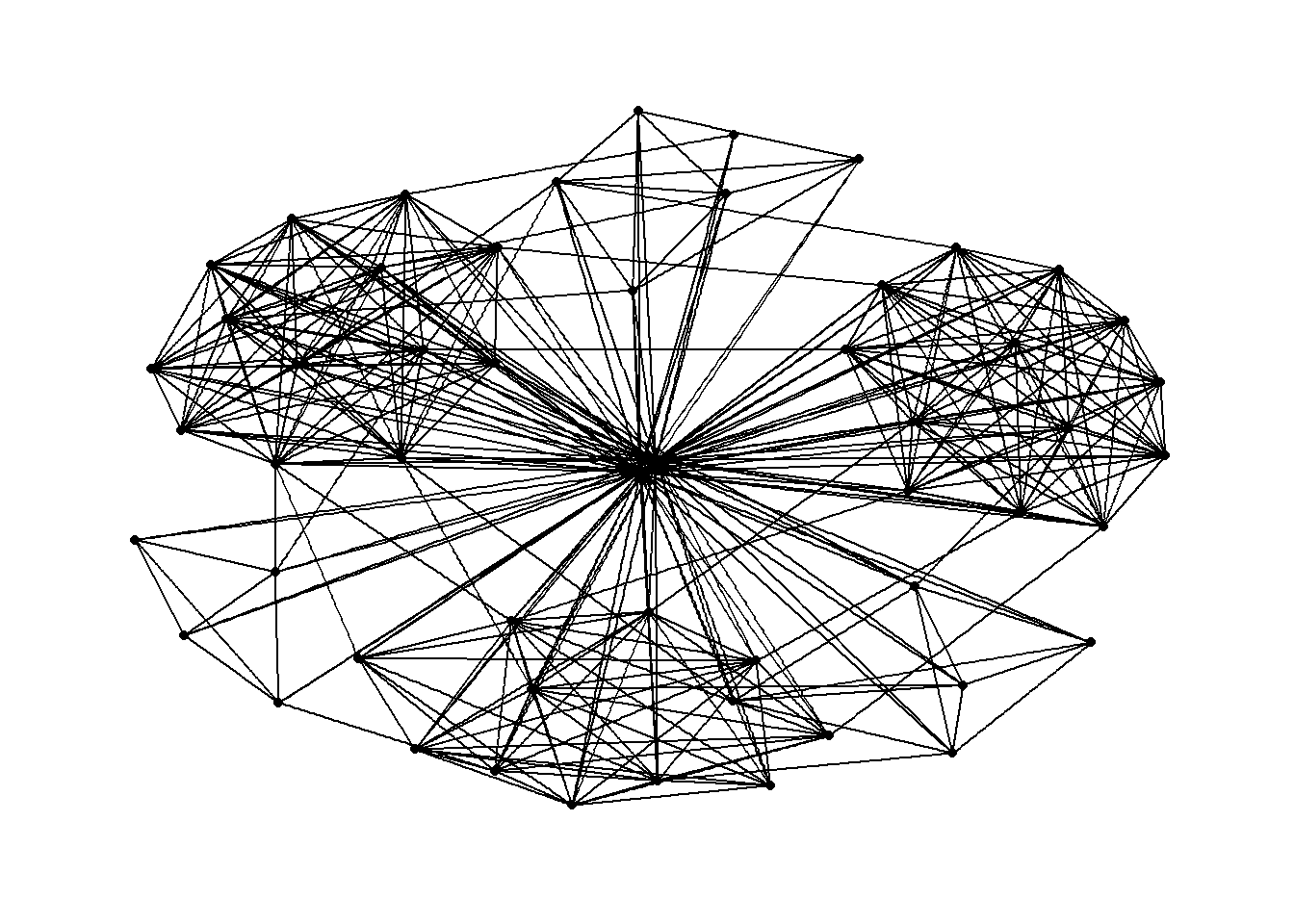

g <- ggraph(GAStech_graph)+ geom_edge_link(aes()) + geom_node_point(aes())
g + theme_graph()
g <- ggraph(GAStech_graph)+ geom_edge_link(aes(color = 'white')) + geom_node_point(aes(color='white'))
g + theme_graph(background='black', text_colour = 'white')

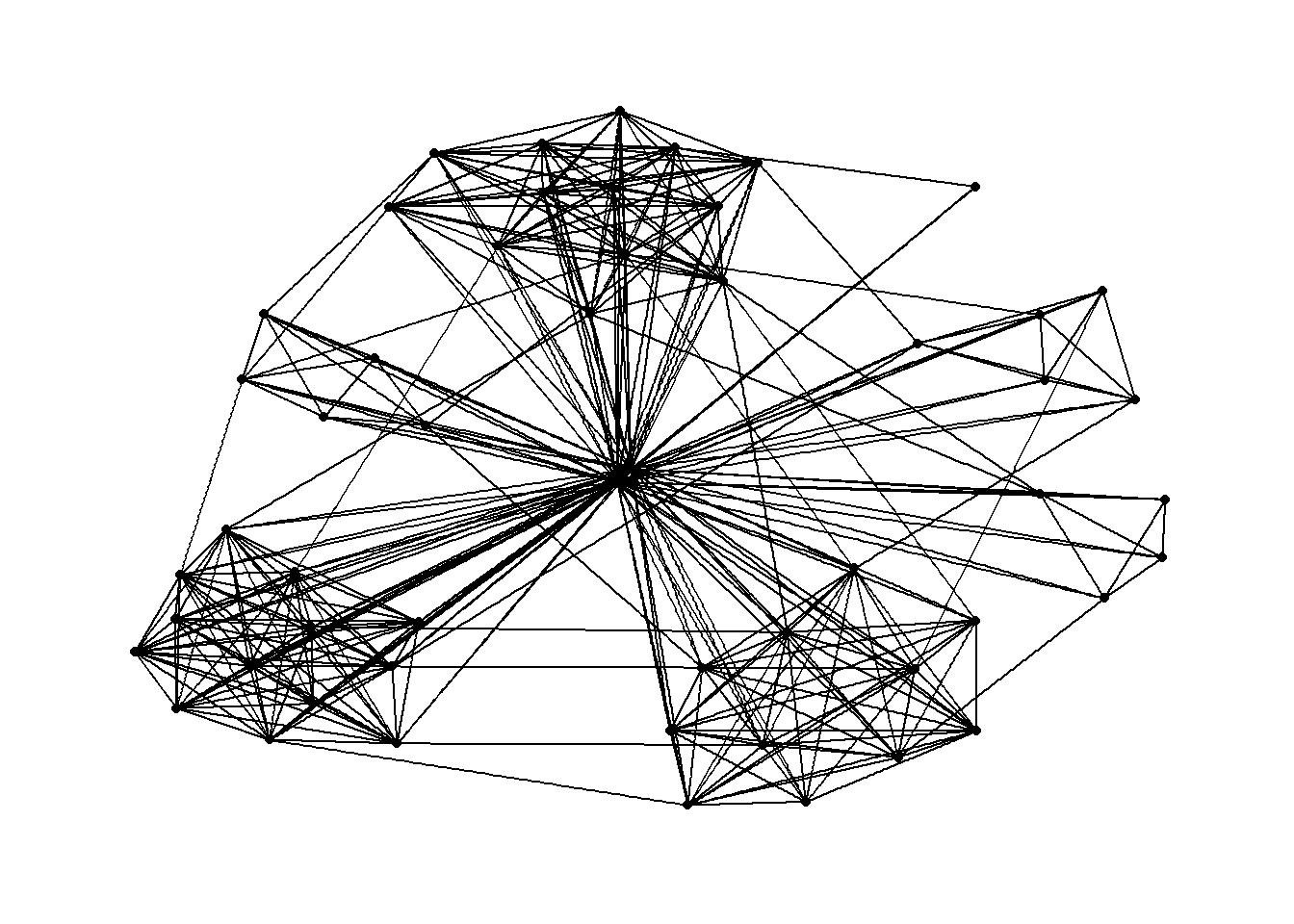

g <- ggraph(GAStech_graph,
layout = 'fr')+
geom_edge_link(aes())+ geom_node_point(aes())
g + theme_graph()

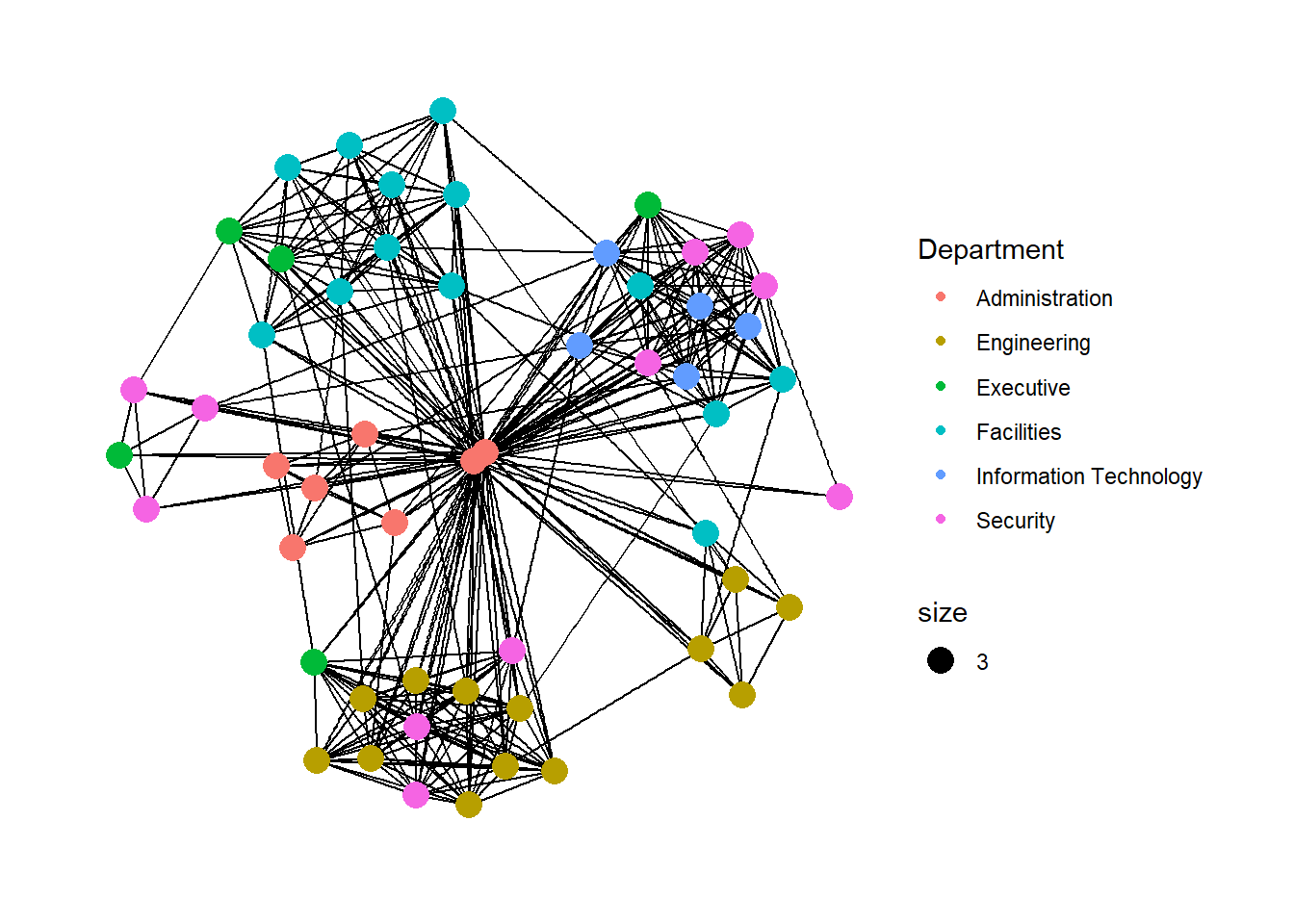

g <- ggraph(GAStech_graph, layout="nicely")+
geom_edge_link(aes())+
geom_node_point(aes(color=Department, size=3))
g+theme_graph()

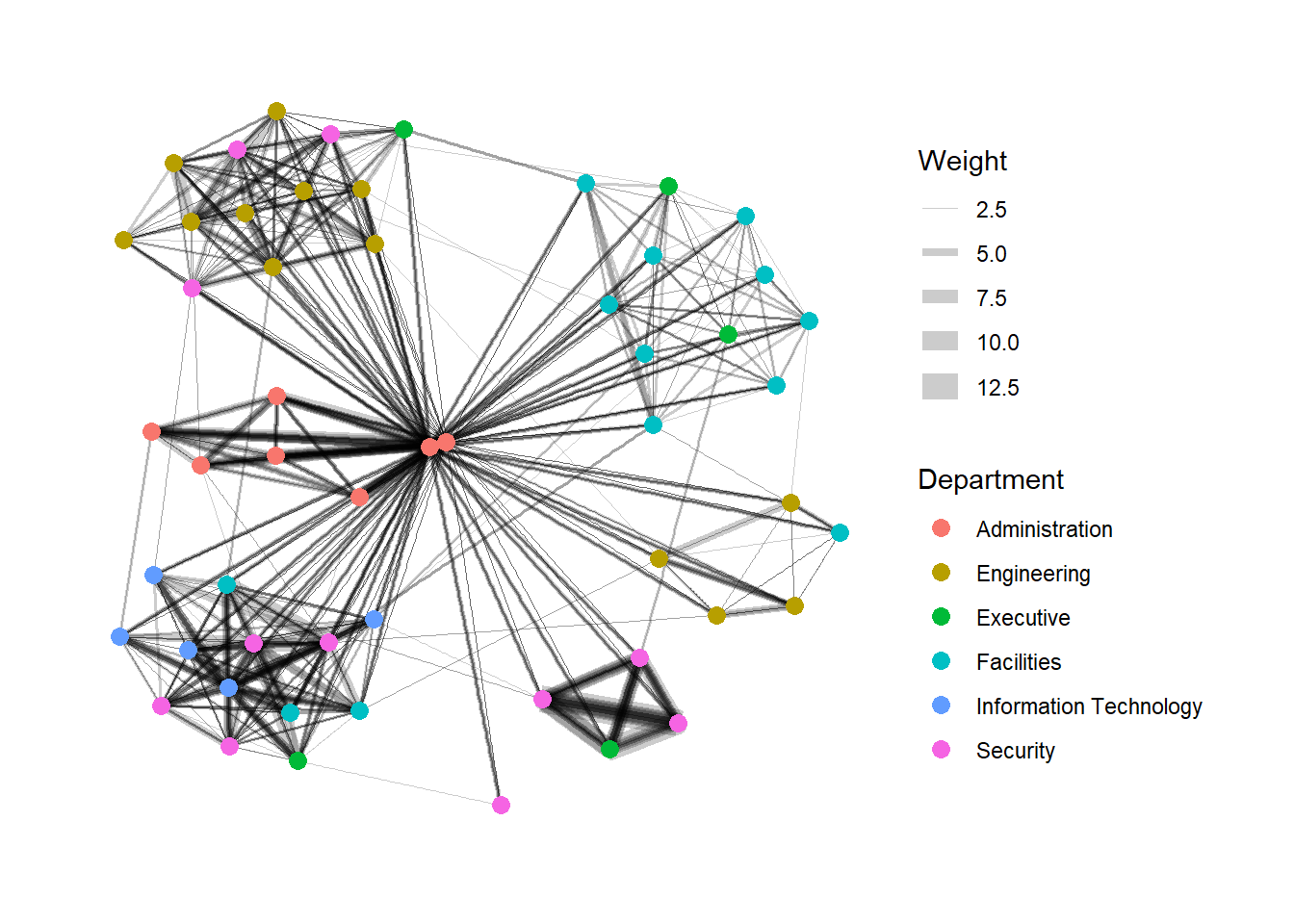

g <- ggraph(GAStech_graph,
layout = "nicely") +
geom_edge_link(aes(width=Weight),
alpha=0.2) +
scale_edge_width(range=c(0.1,5))+
geom_node_point(aes(colour = Department),
size = 3)
g + theme_graph()

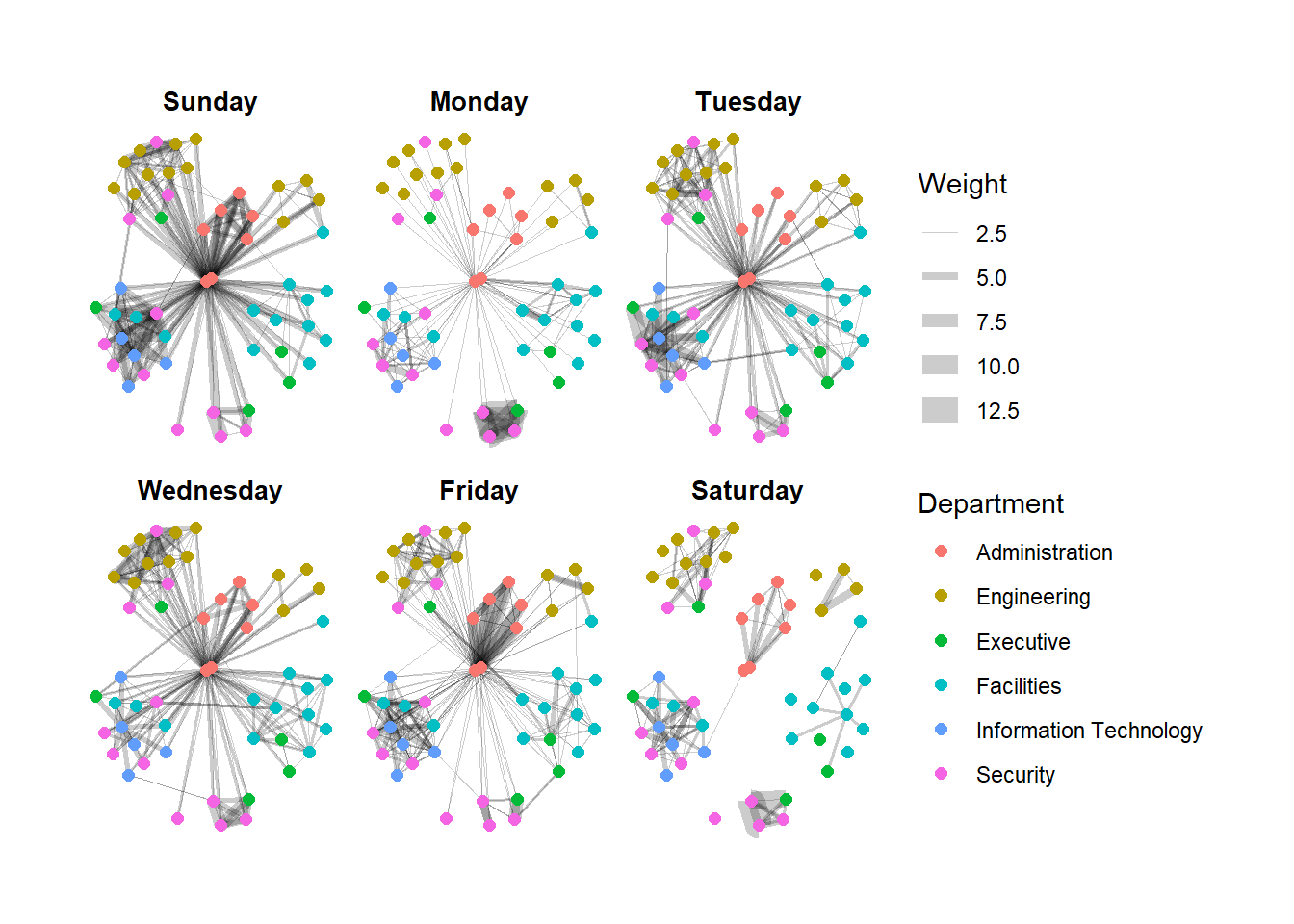

Working with facet_edges()
set_graph_style()
g <- ggraph(GAStech_graph,
layout='nicely')+
geom_edge_link(aes(width=Weight),
alpha=0.2) +
scale_edge_width(range=c(0.1,5))+
geom_node_point(aes(colour=Department),
size=2)

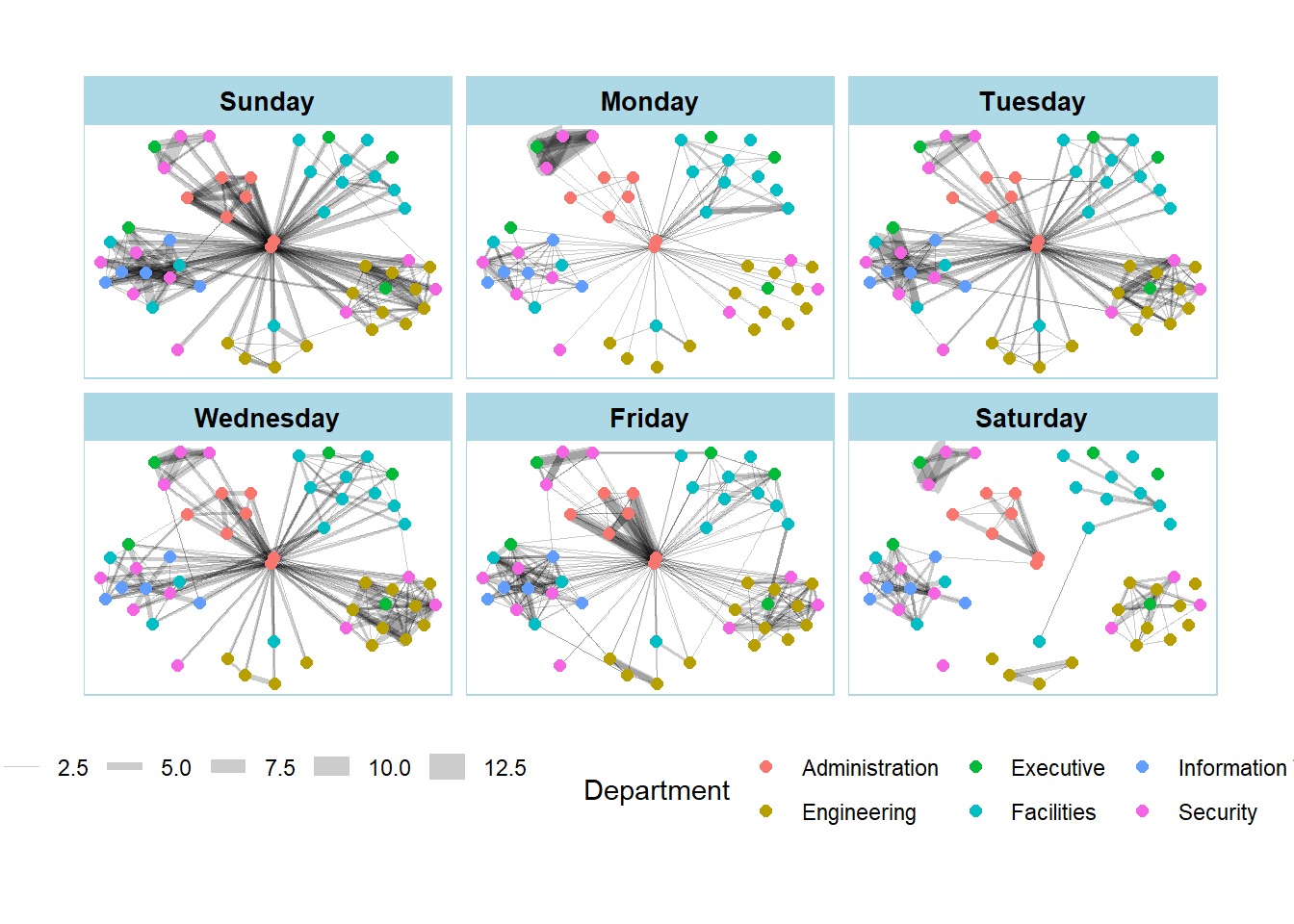

g + facet_edges(~Weekday)

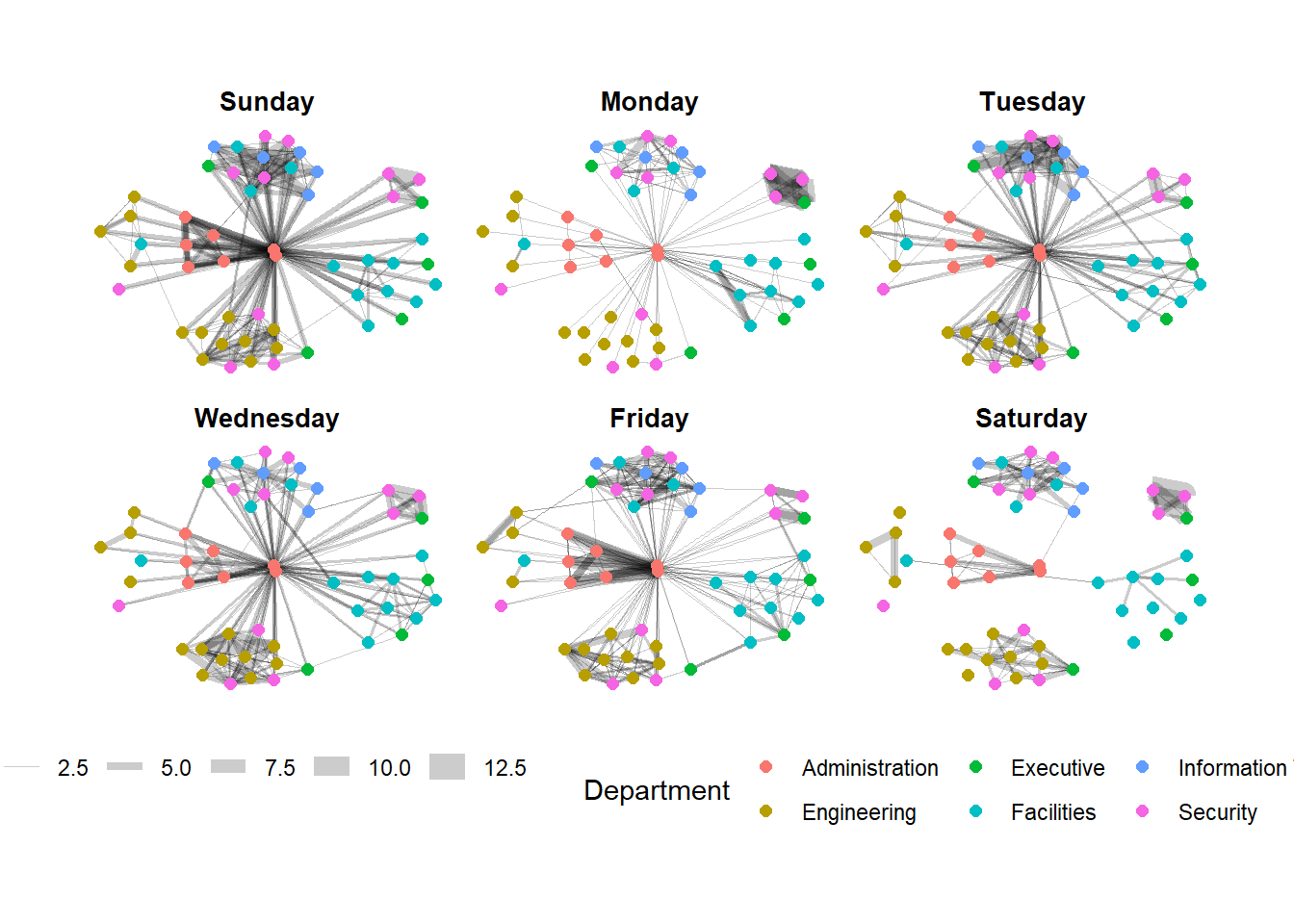

set_graph_style()
g <- ggraph(GAStech_graph,
layout='nicely')+
geom_edge_link(aes(width=Weight),
alpha=0.2) +
scale_edge_width(range=c(0.1,5))+
geom_node_point(aes(colour=Department),
size=2)+
theme(legend.position = 'bottom')
g + facet_edges(~Weekday)
set_graph_style()
g_2 <- ggraph(GAStech_graph,
layout='nicely')+
geom_edge_link(aes(width=Weight),
alpha=0.2)+
scale_edge_width(range=c(0.1,5))+
geom_node_point(aes(colour=Department),
size=2)
g_2 + facet_edges(~Weekday)+
th_foreground(foreground='lightblue',
border=TRUE)+
theme(legend.position = 'bottom')
set_graph_style()
g_2 <- ggraph(GAStech_graph,
layout='nicely')+
geom_edge_link(aes(width=Weight),
alpha=0.2)+
scale_edge_width(range=c(0.1,5))+
geom_node_point(aes(colour=Department),
size=2)

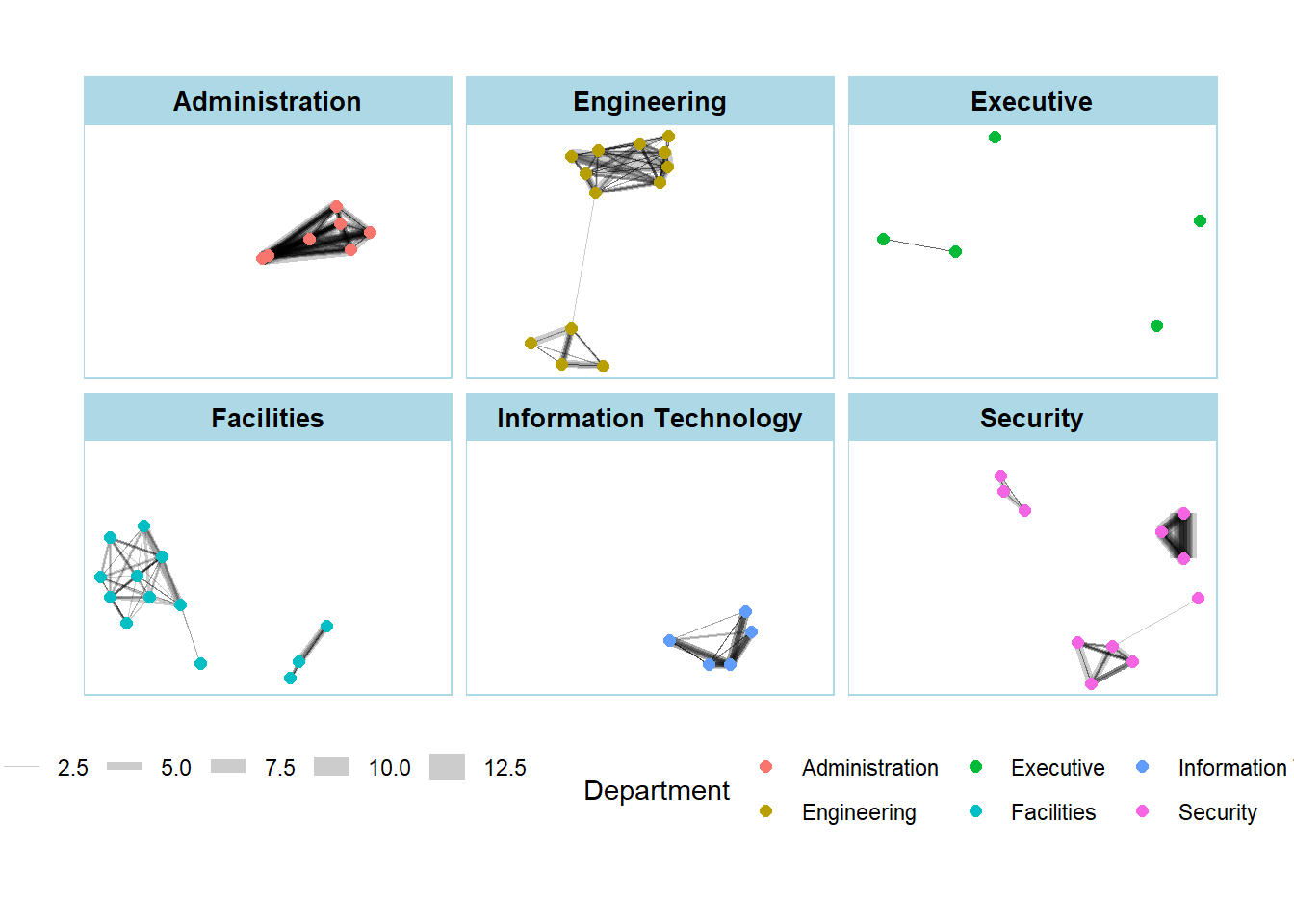

g_2 + facet_nodes(~Department)+
th_foreground(foreground='lightblue',
border=TRUE)+
theme(legend.position = 'bottom')
Network Metrics Analysis
Computing centrality indices

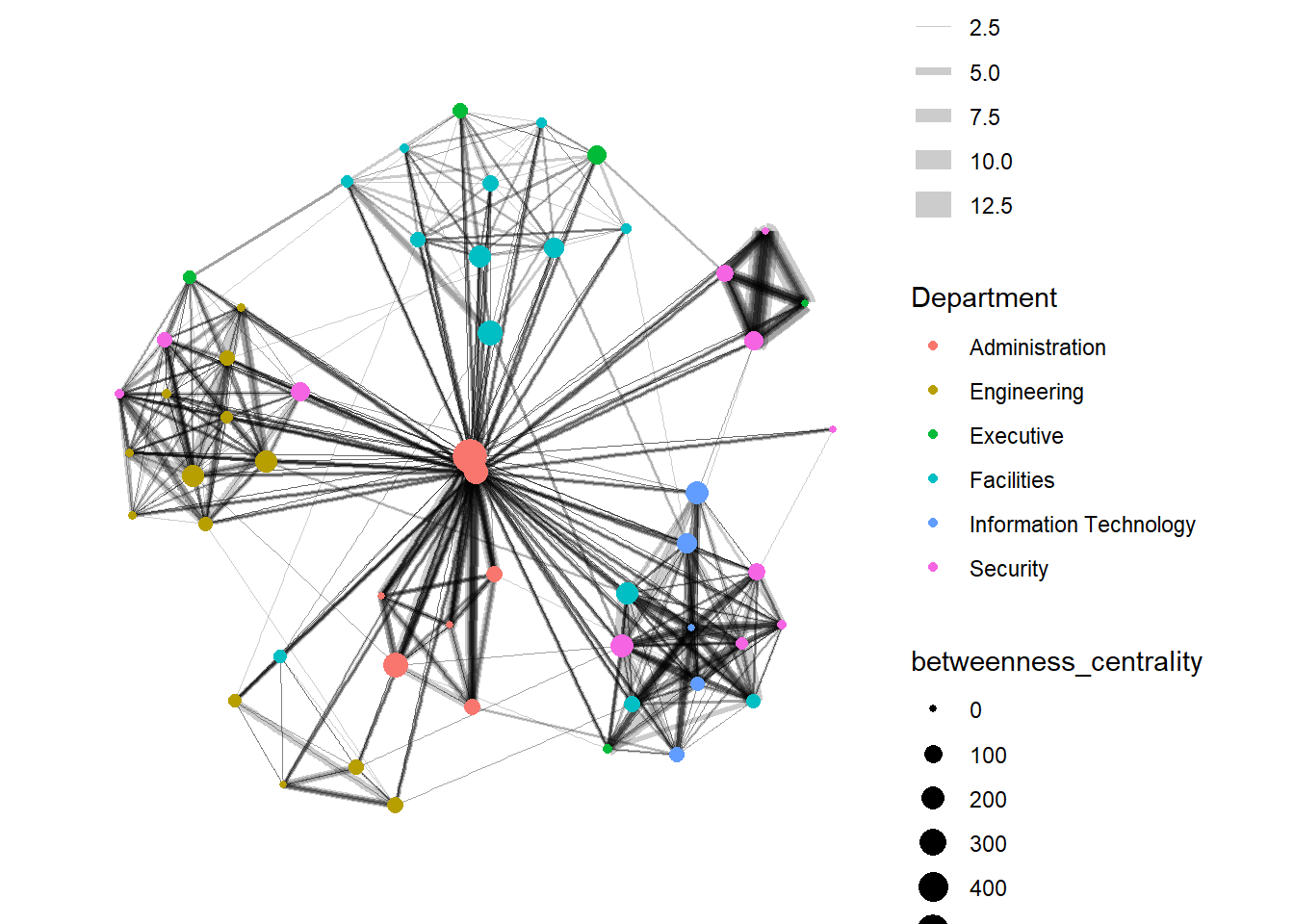

g <- GAStech_graph %>%
mutate(betweenness_centrality = centrality_betweenness()) %>%
ggraph(layout = 'fr')+
geom_edge_link(aes(width=Weight),
alpha=0.2)+
scale_edge_width(range=c(0.1,5))+
geom_node_point(aes(colour=Department,
size=betweenness_centrality))
g+theme_graph()

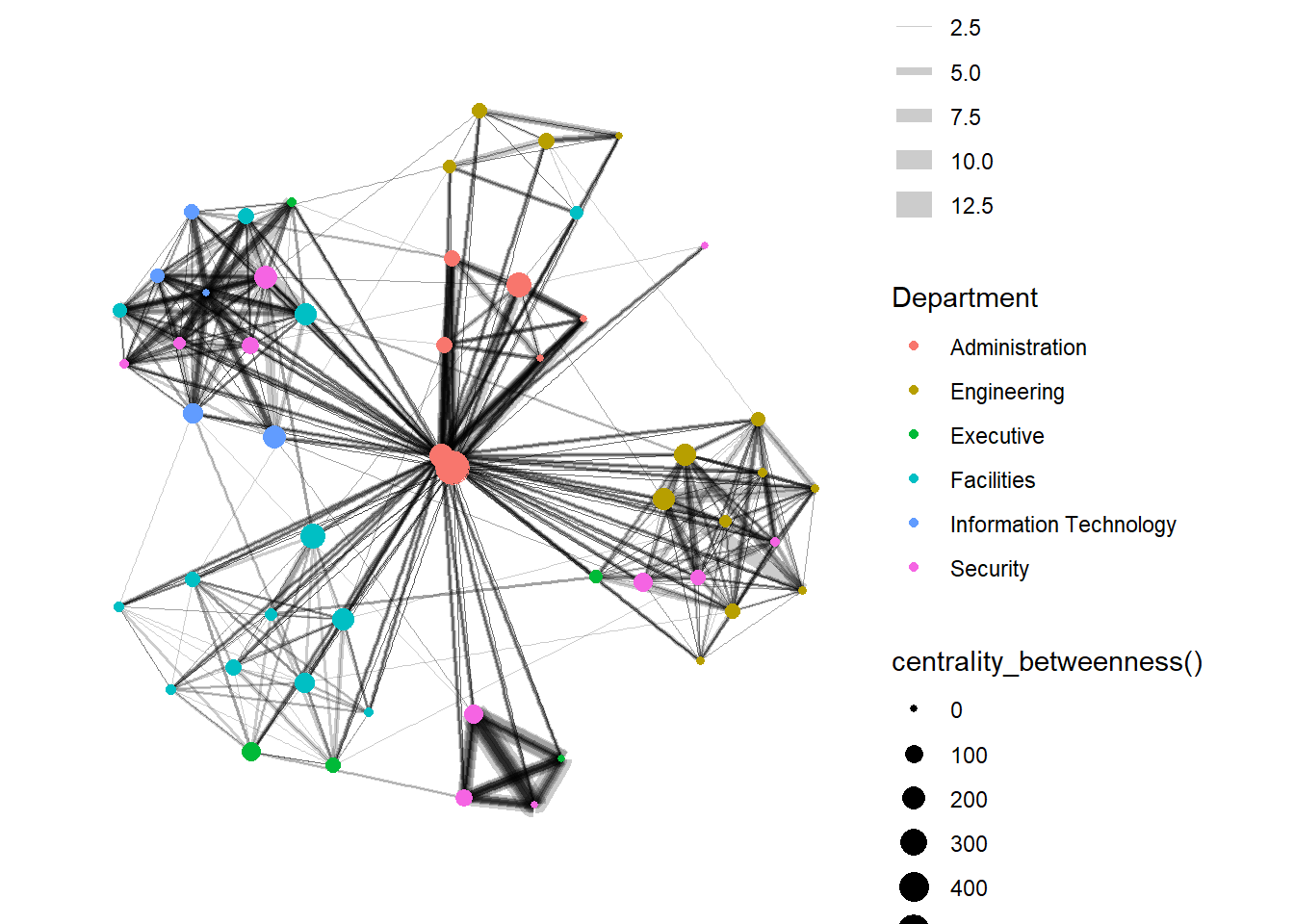

g <- GAStech_graph %>%
ggraph(layout = "fr") +
geom_edge_link(aes(width=Weight),
alpha=0.2) +
scale_edge_width(range = c(0.1, 5)) +
geom_node_point(aes(colour = Department,
size = centrality_betweenness()))
g + theme_graph()
Visualising Community
g <- GAStech_graph %>%
mutate(community=as.factor(group_edge_betweenness(weights=Weight,directed = TRUE))) %>%
ggraph(layout='fr')+
geom_edge_link(aes(width=Weight),
alpha=0.2)+
scale_edge_width(range=c(0.1,5))+
geom_node_point(aes(colour=community))
g+theme_graph()
Building Interactive Network Graph with visNetwork
Date Preparation
GAStech_edges_aggregated <- GAStech_edges %>%
left_join(GAStech_nodes, by=c('sourceLabel'='label')) %>%
rename(from=id) %>%
left_join(GAStech_nodes, by=c('targetLabel'='label')) %>%
rename(to = id) %>%
filter(MainSubject=='Work related') %>%
group_by(from,to) %>%
summarise(weight=n()) %>%
filter(from!=to) %>%
filter(weight>1) %>%
ungroup()Plotting the first interactive network graph
visNetwork(GAStech_nodes,
GAStech_edges_aggregated) %>%
visIgraphLayout(layout='layout_with_fr')Working with visual attributes - Nodes
GAStech_nodes <- GAStech_nodes %>%
rename(group=Department)visNetwork(GAStech_nodes,
GAStech_edges_aggregated) %>%
visIgraphLayout(layout='layout_with_fr') %>%
visLegend() %>%
visLayout(randomSeed = 123)Working with visual attributes - Edges
visNetwork(GAStech_nodes,
GAStech_edges_aggregated) %>%
visIgraphLayout(layout = 'layout_with_fr') %>%
visEdges(arrows = 'to',
smooth = list(enables=TRUE,
type='curvedCW'))%>%
visLegend() %>%
visLayout(randomSeed=123)Interactivity
visNetwork(GAStech_nodes,
GAStech_edges_aggregated) %>%
visIgraphLayout(layout='layout_with_fr') %>%
visOptions(highlightNearest = TRUE,
nodesIdSelection = TRUE) %>%
visLegend() %>%
visLayout(randomSeed = 22)
